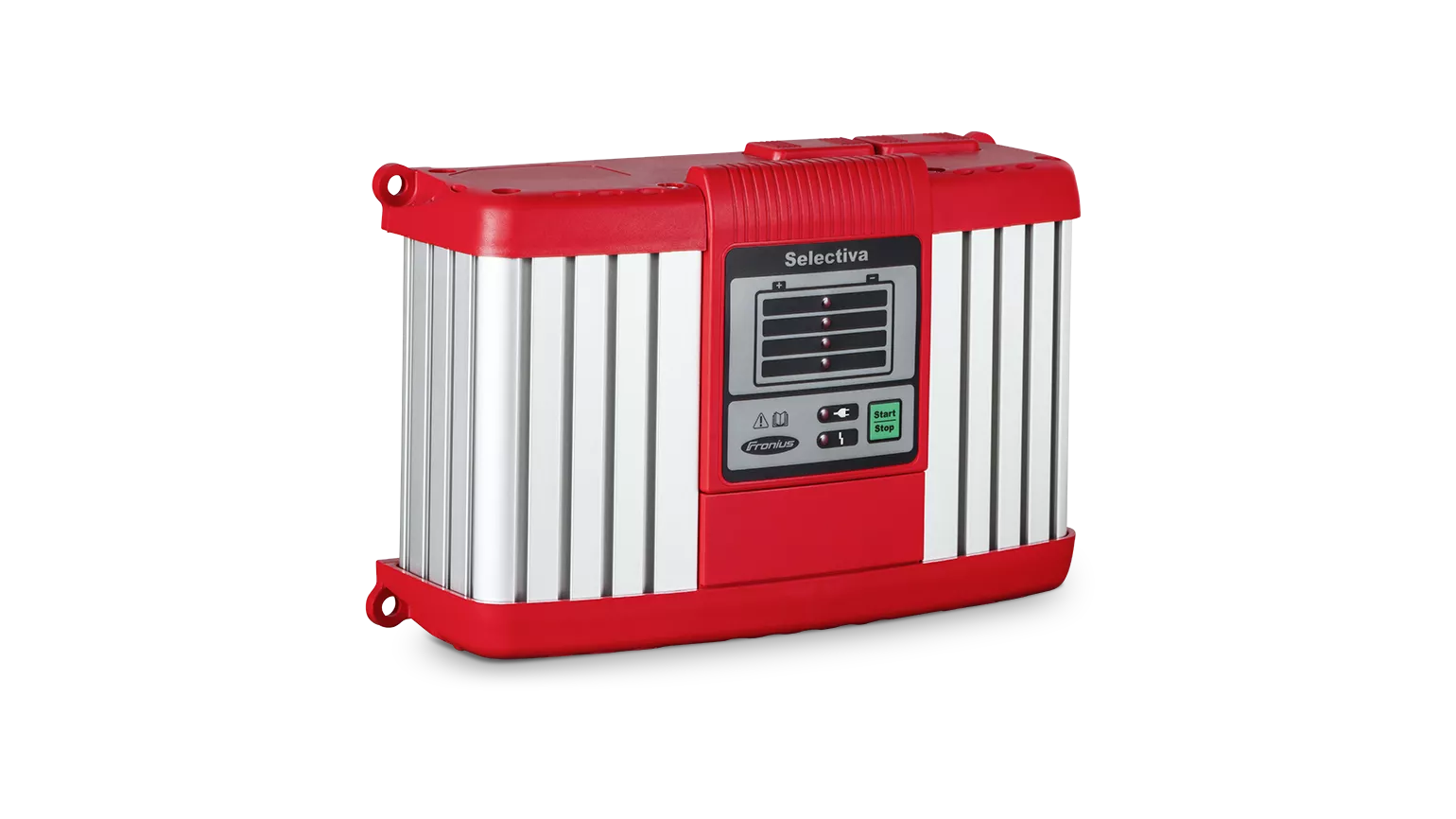

Perfect Charging

Battery chargers for 12 V / 24 V batteries

One battery charger for every battery

The battery chargers from the Selectiva product family offer flexible charging of batteries with different voltages and capacities. Among the benefits for you are the simple and standardised operation and amount of space needed as well as low operating costs.
Please choose your desired product.

Product details

General Data

Mains Frequency50 Hz
Length247 mm
Width162 mm
Height88 mm
Weight2,1 kg
Weight2,1 kg
Weight incl. packaging2,38 kg
Interference emission classA

Technical Data

Mains frequency maximum60 Hz
Mains voltage1~ 230V
Mains Frequency50/60 Hz
AC input current in A effectiv2,3 A
Mains fuse16 A
Nominal Power315 W
Duty Cycle100 %
Residual current Circuit BreakerTyp A
Minimum Mains Lead Cross Section1 mm²
Nominal output voltage12 V
Output Voltage Range2-16,8V
Charging current / output current nominal20 A
Width90 mm
Dimension / h155 mm
Weight1,9 kg
Ambient Temperature Range-20°C / +40°C
Maximum Relative Humidity85%
Max. altitude2000 m
Protection classIP40
Test symbolCE

Active Inverter

- Compact dimensions and low weight for flexible application options - Optimised charging process for maximum energy efficiency and lower energy costs - Conservation charging minimises the risk of self discharge, even during longer periods of non-use - High performance: optimal use of battery capacity
